Automatic Palletizing System For Cartons

Highlights

Automatic Palletizing System uses 4/6 axis robot to stack boxes (maximum 35kg) onto pallets (1200x1000mm) at a speed of 45 boxes/minute. Integrated E-Factory software, customizable gripper, supports expansion and connection of other devices. Operated by PLC/HMI, ISO standard, safe and space-saving.

Hotline: 0965 800 166

1. Introduction of automatic Palletizing system

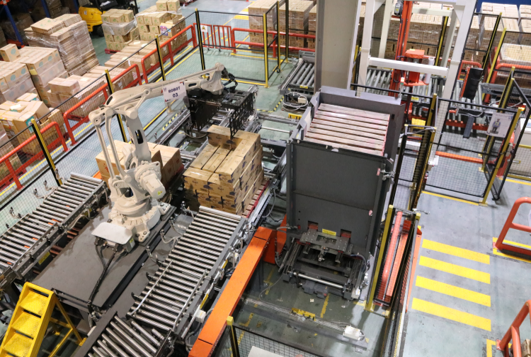

The Automatic Palletizing System for Boxes is a solution that uses industrial robots to stack cartons or boxed products onto pallets automatically, accurately and stably. This system helps businesses reduce labor, increase productivity and optimize working space in modern manufacturing plants.

2. Multi-industry applications

The automatic Palletizing system is designed to be flexible and versatile, suitable for many production fields such as:
FMCG (Fast Moving Consumer Goods)
F&B (Food & Beverage)
Logistics, warehousing
Pharmaceuticals, cosmetics
And many other industries

3. Outstanding benefits when using automatic Palletizing system

Reduce labor costs : Robots completely replace manual carton stacking.
Increased productivity & accuracy : Stacking up to 45 cases/min, operating continuously 24/7.
Optimized space : Compact design, space saving.
Process automation : Easy to integrate with case packer, film wrapping machine,…
Stable operation : ISO standard, easy to maintain, ensuring hygiene & safety.

4. Flexible & easily scalable

Easy to customize the program : Change on software, no hardware intervention required.
E-Factory Integration : Device monitoring, performance optimization.
Support a variety of products : Optional vacuum or clamp gripper.
Flexible expansion : Add filling stations or change the arrangement easily.

5. Commitment from supplier

Easy to operate design – quick maintenance
Strictly comply with ISO, HACCP standards and labor safety regulations
On-site warranty – quick technical support
Optimize performance – save energy consumption

Outstanding technical parameters of palletizing system

Industrial Robots: 4 or 6 Flexible Axis
Gripper: Custom (vacuum or clamp)
Product feeding conveyor: roller
Pallet feeding conveyor: automatic
Central control: PLC, HMI
Frame: Durable powder coated steel
Maximum weight per box: 35kg
Crate stacking capacity: up to 45 crates/min
Pallet size: 1200 x 1000 mm
Box size: 200–600 mm (length x width)
Pallet storage: 10 pallets
Smart Monitoring: E-Factory Software
Absolute safety: Fence system, interlock, light curtain

7. Contact for consultation and quotation

Are you looking for an automated palletizing solution that is efficient, cost-effective and absolutely safe?
